Bench Lathe, KY1340A, KY1440A, KY1340B, KY1440B
Specification of Bench Lathe, KY1340A, KY1440A, KY1340B, KY1440B |
Model No. |
KY1340A |
KY1440A |
KY1340B |
KY1440B |
Max. swing over bed |
330mm |
360mm |
330mm(13") |
360mm(14") |
Max. swing in gap |
476mm |
506mm |
475mm(19") |
506mm(20") |
Max. swing over cross slide |
185mm |
215mm |
195mm(7-5/8") |
220mm(8-5/8") |
Bed width |
187mm |
206mm(8-1/8") |
Max. Length of workpiece |
1000mm |
1000mm(40") |
Spindle nose |
D1-4 |
Spindle bore |
φ38mm |
38mm(1-1/2") |
Taper of spindle bore |
MT5 |
Spindle speed steps |
8 |
8(single speed motor)/ 16(two speeds motor) |
Spindle speed scope |
70~2000r/min |
45-1800rpm |
90-1800rpm |
Max. Travel of compound Slide |
|
89mm(3-1/2") |
Max. Travel of Cross Slide |
|
152mm(6") |
Max. Travel of Carriage |
|
945mm(37-1/4") |
Inch thread |
4~56T.P.I/32 |
4-112 T.P.I. (44kinds) |
Metric thread |
0.4~7mm/32 |
0.40-7.0mm(22 kinds) |
Diametric thread |
8~120D.P./33 |
|
Module thread |
0.2~3.5MP/27 |
|
Max. Tool Size |
|
16x16mm(5/8"x5/8") |
Longitudinal feed range |
0.082~2.71mm/r |
0.0012"-0.0294"/Rev (inch) |
0.043-0.653mm/Rev. (metric) |
Cross feed range |
0.022~0.933mm/r |
0.0003"-0.100"/Rev (inch) |
0.015-0.220mm/Rev.(metric) |
Max. travel of tailstock quill |
95mm |
120mm(4-3/4") |
Diameter of Tailstock quill |
|
45mm(1-25/32") |
Taper hole of tailstock |
MT3 |
M.T.3 |
Electric motor |
2HP(1.5KW)110v or 220v(1ph) |
|
220v or 380v(3ph) |
|
Power of Main Motor |
|
3HP/3PH 50HZ(60HZ) |
Overall Dimension(L×W×H) |
|
1822×787×1205mm |
1822×787×1235mm |
|
71-3/4"×31"×47-1/2" |
71-3/4"×31"×48-5/8" |
Net weight/Gross weight(1000mm) |
495/595kg |
700kgs |
750kgs |
Standard Accessories for Bench lathe, KY1340A, KY1440A, KY1340B, KY1440B |
|
4-jaw chuck & backplate |
1pc |
Face plate |
1pc |
Steady rest |
1set |
Follow rest |
1set |
Stand |
1set |
Toolbox & tools |
1pc |
Micro carriage stop |
1set |
Working lamp |
1set |
Coolant system |
1set |
Foot brake system |
1set |
Optional Accessories for Bench lathe, KY1340A, KY1440A, KY1340B, KY1440B |
|
Quick change tool post |
1set |
Turning tools |
1set |
Taper turning attachment |
1set |
Digital readout |
1set |
Lead screw cover |
1set |
Kaiyun Machinery Company is an experienced bench lathe supplier based in China. In order to make our customers feel secure in purchasing our metalworking lathes, glassworking lathe, woodworking lathes, metal forming machines, rotary lathes, and other products, we only purchase those CE certified and environmentally friendly products from well-known lathe manufacturers.
We expect your inquiries and orders. Please contact us by email and phone listed on the website any time.

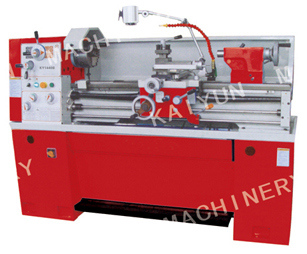

Bench Lathe, KY1440A, KY1440B Bench lathes, KY1340A, KY1440A, KY1340B, and KY1440B are heavy duty machine tools widely used machinery used for cutting, knurling, drilling or sanding materials to create a new object.
Features of Bench Lathe, KY1340A, KY1440A, KY1340B, KY1440B
1) V-way bed of our bench lathe has higher stability as it is strengthened and preciously fixed in place.
2) High-tech tapered roller bearing sustains the D1-4 spindle.
3) The gearbox is fixed at maximum stability that has maximum feed and threading functions.
4) Maximum working space with gapping of bed section.
5) Carriage mounted spindle is controlled by a lever arm.
6) Slide-ways is effectively controlled by adjustable gibs.
7) Automatic feed and threading are absolutely interlocked.
8) Much flexible Tailstock can be offset for turning tapers.
9) Installed with emergency stop button, load switch, process, etc.
