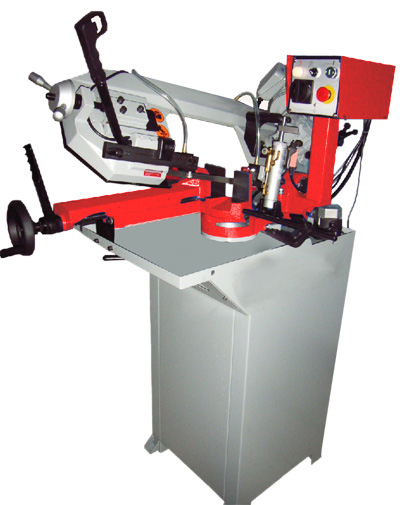

| Model | KY4017G |
| Motor power(kw) | 0.75kw |
| Saw band size(mm) | 2110×20×0.9mm |
| Band speed(m/min) | 40(230V); 49(110V) |
| 40/80(380V) | |
| Pivoting band holder bow | 0°-60° |
| Cutting capacity | 0° 170mm/round 210×95/flat 170×170/square |
| 45° 120mm/round 110×110/square | |
| 60° 70mm/round 60×60/square | |
| N.W. :(kg) | 162/194 |
| MEAS. (cm) | 126×54×90-box1 |
| 88×56×15-box2 | |
| Units/20’ container | 36 pcs |

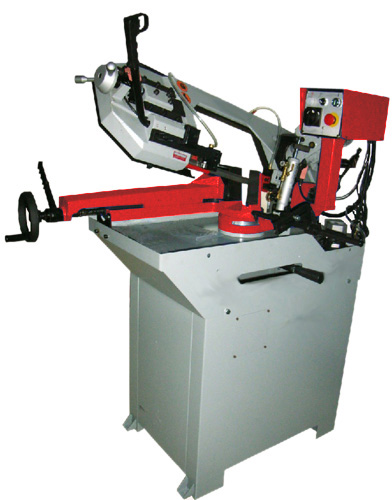

| Model | KY4023G |
| Motor power(kw) | 1.1kw |
| Saw band size(mm) | 2460×27×0.9mm |
| Band speed(m/min) | 36(230V);44(110V) |
| 36/72(380V) | |
| Pivoting band holder bow | 0°-60° |
| Cutting capacity | 0° 220mm/round 220×110/flat 260×110/square |
| 45° 150mm/round 145×145/square | |
| 60° 90mm/round 85×85/square | |
| N.W. :(kg) | 220/259 |
| MEAS. (cm) | 146×57×104-box1 |
| 83×78×19-box2 | |
| Units/20’ container | 28 pcs |
| Model | KY5012W |
| Description | Metal cutting band saw |
| Motor(w) | 370 |
| Blade size(mm) | 1638×12.5×0.6 |
| Blade speed(50HZ) | 20/29/50m/min |
| Blade speed(60HZ) | 24/36/61 |
| Table size(mm) | 245×245 |
| Vice tilt | 0°-45° |
| Cutting capacity | 100mm,round |
| 100×150mm,flat | |
| N.G. weight (kg) | 61/64 |
| Packing size(mm) | 1020×320×390 |
| Units/20’ container | 230 |
OEM FEATURES:
Machine for cutting metals in general, equipped with a band saw blade in the dimensions of 1640mm x 0.64mm x 1/2", with depth feed by gravity, equipped with a tray for cutting work on the bench, transmission by belts in V and 6 speeds 20/29/50 m/min, mounted under the workbench in a bent profile structure, with rotation at the total base of the head for cutting from 0 to 45 degrees.Vise equipped with quick clamping without spindle.
Features of KY5018W Metal Band Saw
1. To guide by ball bearing for accurate straight or
angle cut.
2. Four wheels on the machine easier the operation.
3. Blade is cooled by excellent
coolant pumps.
4. Automatic cut-off switch ensures secure operation.
| Model: | KY5018W |
| Description: | Metal cutting band saw |
| Motor(w): | 750 |
| Blade size(mm): | 2360x20x0.9 |
| Blade speed(50HZ): | 34/41/59/98m/min |
| Blade speed(60HZ): | 41/49/69/120m/min |
| Cutting capacity at 90°: | 180mm,round |
| 180×300mm,flat | |
| Cutting capacity at 45°: | 110mm,round |
| 110×180mm,flat | |
| N.G. weight (kg): | 158/185 |
| Packing size(mm): | 1250×450×1080 |
| Units/20’ container: | 42 |
|
Specification of Metal Band Saw, KY5018WA-1 |
||
|
Model |
KY5018WA-1 |
|
|
Motor(W) |
750W(1HP) |
|
|
Blade size(mm) |
2360X20X0.9 |
|
|
Blade speed(m/min) |
34, 41, 59, 98(50Hz) 41, 49 , 69, 120(60Hz) |
|
|
Vice tile |
0°~45° |
|
|
Cutting capacity at 90° |
180mm 180X300mm |
|
|
Cutting capacity at 45° |
110mm 110X180mm |
|
|
Table height(mm) |
550 |
|
|
N.W/G.W.(Kgs) |
145/185 |
|
|
Packing size(mm) |
1330X460X1080 |
|
|
Unit/20’ container |
40pcs |
|
