EspañolAccessories of Metalworking Machinery
3 Jaw Self Centering Chuck
Our 3 jaw self centering chuck is available in many models, including 80mm, 100mm, 125mm, 160mm, 200mm, 250mm, 320mm, 400mm, 500mm, 630mm.
4 Jaw Self Centering Chuck
Our 4 jaw self centering chucks are available in many models, including 80mm, 100mm, 125mm, 160mm, 200mm, 250mm, 320mm, 400mm, 500mm, 630mm, Welcome to choose!

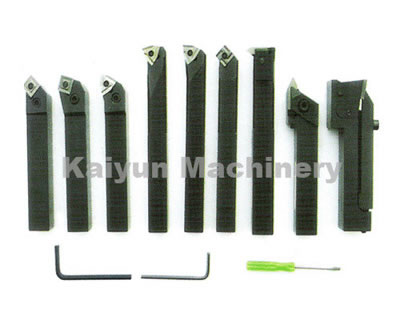

9 Pieces Indexable Cutting Tool

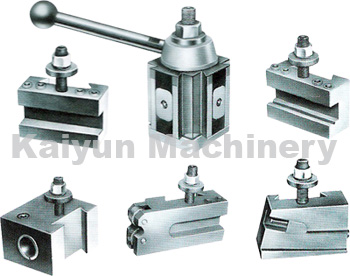

Model: 8mm/10mm/12mm/20mm/25mm, please choose!Quick Change Tool Post
Of the main lathes, quick change tool post is the main component and is made up of the cutter-cartridge body and the tool-holder. This main unit accommodates different cutting tools replacing the square tool table for making cylindrical facing, end facing, cutting, knurling, drilling, enlarging boring and reaming etc. The main features and characteristics of our quick change tool post include external tool-mounting, fast tool-changing (range of 3 or 5 second), accurate precise positioning, greater stability and much more.
Italy Style Quick Change Tool Post (5 pcs sets):
| Model NO. | Each Set Includes |
| M | 1 PCS 501-M, 3PCS 502-M AND 1 PCS 503-M |
| AR-AP | 1 PCS 501-AR-AP、3 PCS 502-AR-AP AND 1 PCS 503-AR-AP |
| A | 1 PCS 501-A, 3 PCS 502-A AND 1 PCS 503-A |
| BR-BP | 1 PCS 501-BR-BP、3 PCS 502-BR-BP AND 1 PCS 503-BR-BP |
| B | 1 PCS 501-B, 3 PCS 502-B AND 1 PCS 503-B |
| C | 1 PCS 501-C, 3 PCS 502-C AND 1 PCS 503-C |
| Model No. | Lathe Swing (in.) | Each Set Includes |
| 251-100 | 12 | Each 1 pc of 250-100, 250-101, 250-102, 250-104, 250-107, 250-110 |
| 251-200 | 10-15 | Each 1 pc of 250-200, 250-201, 250-202, 250-204, 250-207, 250-210 |
| 251-300 | 13-18 | Each 1 pc of 250-300, 250-301, 250-302, 250-304, 250-307, 250-310 |
| 251-400 | 14-20 | Each 1 pc of 250-400, 250-401, 250-402, 250-404, 250-407, 250-410 |
Europe Style 40-Position Quick Change Tool Post (5 PCS sets):
| Model No. | Each set includes |
| TOOA0 | 1 pcs tool post 540-000(A0), 3 pcs 540-010(A0D12×50) and 1 pcs 540-020(A0B12×50) |
| TOOA1 | 1 pcs tool post 540-100(A1), 3 pcs 540-115(A1D20×90) and 1 pcs 540-122(A1B20×90) |
| TOOE5 | 1 pcs tool post 540-200(E5), 3 pcs 540-211(E5D20×100) and 1 pcs 540-220(E5B30×100) |
| TOOB2 | 1 pcs tool post 540-300(B2), 3 pcs 540-311(B2D25×120) and 1 pcs 540-320(B2B32×130) |
| TOOC3 | 1 pcs tool post 540-400(C3), 3 pcs 540-411(C3D32×150) and 1 pcs 540-422(C3B40×160) |
| TOOD1 | 1 pcs tool post 540-500(D1), 3 pcs 540-511(D1D40×180) and 1 pcs 540-520(D1B50×180) |
Milling Chuck
| Model | Clamping range | Shank | pcs/set | Weight (kg) | |
| mm | in | ||||
| J7316B/R8 | 4 5 6 8 19 12 14 16 | 1/8" 3/16" 1/4" 5/16" 3/8" 1/2" 9/16" 5/8" | R8 | 8 | 3.58 |
| J7316B/30 | ISO30 | 3.373 | |||
| J7316B/40 | ISO40 | 3.708 | |||
| J7316B/50 | ISO50 | 5.11 | |||
| J7316B/MS2 | MS2 | 3.52 | |||
| J7316B/MS3 | MS3 | 3.752 | |||
| J7316B/MS4 | MS4 | 4.646 | |||
| J7316B/MS5 | MS5 | 3.43 | |||
| J7316B/1" | 1" | 3.80 | |||
| J7316B/1-1/4" | 1-1/4" | 4.506 | |||
OZ Milling Chuck
| Model | Clamping range | Shank | pcs/set | |
| mm | in | |||
| R8-OZ25 | 3.4,5,6,7,8,9,10,11, 12,13,16,18,20,25. (6,8,10,12,16,20,25) | 1/8",3/16",1/4",5/16", 3/8",7/16",1/2",9/16", 5/8",11/16",3/4",13/16" 7/8",15/16",1" (1/4",5/16",3/8",1/2", 5/8",3/4",1") | R8 | 15/7 |
| 30-OZ25 | ISO30 | |||
| 40-OZ25 | ISO40 | |||
| 50-OZ25 | ISO50 | |||
| MS2-OZ25 | MS2 | |||
| MS3-OZ25 | MS3 | |||
| MS4-OZ25 | MS4 | |||
| MS5-OZ25 | MS5 | |||
| 1"-OZ25 | 1" | |||
| 1-1/4"- OZ25 | 1-1/4" | |||
Three Way Angle Vise
Model: 50mm, 75mm, 100mm, 125mm
Drill Chuck with Shaft
As a professional supplier of drill chuck with shaft in China, we can provide different kinds of drill chunks with shaft.
Please contact us if you are in need of drill chuck with shaft.
Live Center
We have product models from MT1 to MT7. Please contact us if you want to purchase know more details, or have special requirements.
Vise
Model: 100mm, 140mm, 200mm

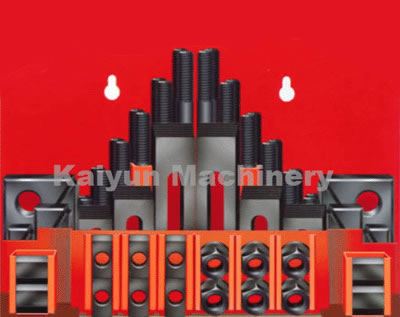

58pcs Clamping Kit
Each Set Include:
6pcs T-Slotn nuts
6pcs Flange nutsn
4pcs coupling nutsn
6pcs Stepn clamps
12pcs Step blocksn
24pcs Studs (each 4) =3", 4", 5", 6", 7", 8"n length.
| Model No. | Table T-slot Size(mm) | Stud Size(mm) |
| KY01 | 9.7 | M8X1.25 |
| KY02 | 11.7 | M10X1.5 |
| KY03 | 13.7 | M10X1.5 |
| KY04 | 13.7 | M12X1.75 |
| KY05 | 15.7 | M12X1.75 |
| KY06 | 15.7 | M14X2 |
| KY07 | 17.7 | M14X2 |
| KY08 | 17.7 | M16X2 |
| KY09 | 19.7 | M16X2 |
| KY10 | 19.7 | M18X2.5 |
| KY11 | 21.7 | M18X2.5 |
| KY12 | 21.7 | M20X2.5 |
| KY13 | 23.7 | M20X2.5 |

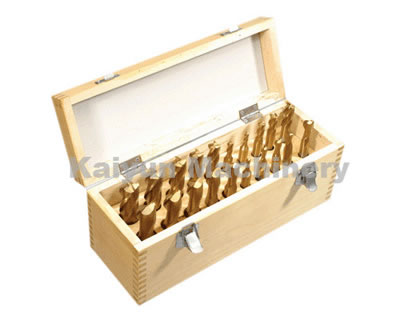

20pcs HSS End Mill
The complete sets include: 2&4 Flute each of 3,4,5,6,8,10,12,14,18,20mm.
2pcs Ball Joint U Clamping Kit
The main features includes, adjustable clamping height, brass plate under the clamp arm for protecting the working material form damage, spherical nut is provide for clamping the material tightly and the casting clamping arm.| Model | Width | Length | Table T-slot Size(mm) | Stud Size(mm) |
| KY40 | 37 | 125 | 13.7 | M12 |
| KY50 | 47 | 150 | 17.7 | M16 |
| KY60 | 57 | 200 | 19.7 | M18 |
