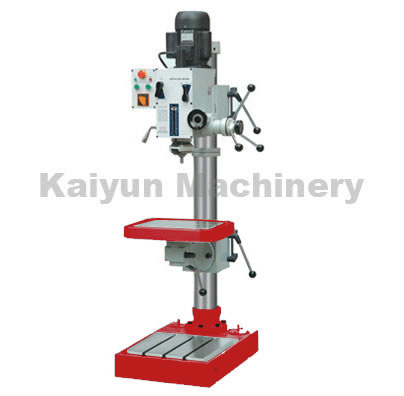

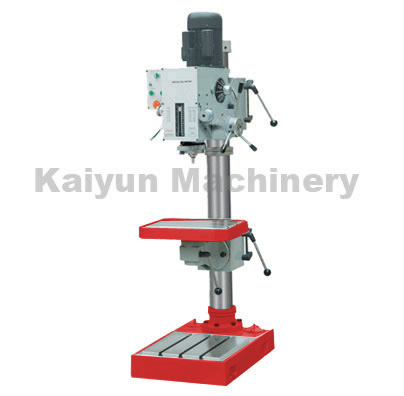

KYZ40, KYZ45, KYZ40-1, KYZ45-1 Drilling Machine
Parameters of Drilling Machine
Model | KYZ40 | KYZ45 | |||
Drilling capacity(cast iron) | 40mm | 45mm | |||
Drilling capacity(SAE-1020 steel) | 32mm | 32mm | |||
Maximum threading capacity | 40mm | 45mm | |||
Distance from spindle nose to table | 725mm | 725mm | |||
Min. distance from spindle axis to column | 283mm | 283mm | |||
Distance from spindle nose to base | 1125mm | 1125mm | |||
Spindle diameter | 75mm | 75mm | |||
Spindle travel | 130mm | 130mm | |||
Spindle taper | M.T.4 or R8 | M.T.4 or R8 | |||
Step of spindle | 6 | 6 | |||
Range of spindle speed | 50Hz | 80-1250r.p.m. | 80-1250r.p.m. | ||
60Hz | 95-1500r.p.m. | 95-1500r.p.m. | |||
Swivel angle of table horizontally | 360º | 360º | |||
Swivel angle of headstock (horizontally) | 360º | 360º | |||
(perpendicularly) | ±90º | ±90º | |||
Table leaned | ±45º | ±45º | |||
Available size of table | 380×306mm | 380×306mm | |||
Fixed table with 3 channels T of width | 16mm | 16mm | |||
Available size on base | 418×415mm | 418×415mm | |||
|
250mm | 250mm | |||
600mm | 600mm | ||||
Power | 1.1Kw(1.5Hp) | 1.5Kw(2Hp) | |||
Voltage/Frequency | As customer’s requirement | ||||
Overall height of column | 1650mm | 1650mm | |||
Net weight | 430kg | 435mm | |||
Gross weight | 480kg | 485mm | |||
Packing size | 800×650×1830mm | 800×650×1830mm |
Model | KYZ40/1 | KYZ45/1 |
Drilling capacity(cast iron) | 40mm | 45mm |
Drilling capacity(SAE-1020 steel) | 32mm | 32mm |
Maximum threading capacity | 40mm | 45mm |
Distance from spindle nose to table | 725mm | 725mm |
Min. distance from spindle axis to column | 283mm | 283mm |
Distance from spindle nose to stand table | 1125mm | 1125mm |
Spindle Diameter | 75mm | 75mm |
Speed-step of automatic feeding of spindle | 6 | 6 |
Automatic feeding amount of spindle | 0.06-0.30mm/r.p.m | 0.06-0.30mm/r.p.m |
Spindle travel | 130mm | 130mm |
Spindle taper | M.T.4 or R8 | M.T.4 or R8 |
Step of spindle | 6 | 6 |
Range of spindle speed 50Hz | 80-1250r.p.m. | 80-1250r.p.m. |
60Hz | 95-1500r.p.m. | 95-1500r.p.m. |
Swivel angle of table horizontally | 360° | 360° |
Swivel angle of headstock (horizontally) | 360° | 360° |
(perpendicularly) | ±90° | ±90° |
Table tilted | ±45° | ±45° |
Available size of table | 380×306mm | 380×306mm |
Fixed table with 3 channels T of width | 16mm | 16mm |
Available size on stand table | 418×415mm | 418×415mm |
250mm | 250mm | |
600mm | 600mm | |
Motor Power | 1.1Kw(1.5Hp) | 1.5Kw(2Hp) |
Voltage/Frequency | As customer’s requirement | |
Overall height of Column | 1650mm | 1650mm |
Net weight | 440kg | 445kg |
Gross weight | 490kg | 495kg |
Packing size | 800×640×1830mm | 800×640×1830mm |
Kaiyun Machinery Company is a professional supplier of drilling machines. Our drilling machines, metalworking lathes, woodworking lathes and other products are all made from high quality raw materials. They are all CE certified and are environmentally friendly.
If you need any of them, please contact us by email and phone.
