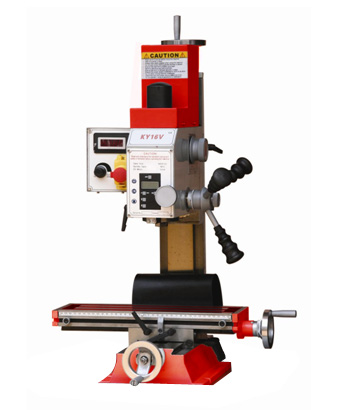

KY16V Drilling Milling Machine
Specification | |
Model | KY16V |
Drilling capacity | 16mm |
Face milling capacity | 50mm |
End milling machine capacity | 16mm |
Spindle taper | MT2 |
Sleeve travel | 50mm |
Low speed stage | 50-1125 rpm |
High speed stage | 100-2250 rpm |
Head rotation | ±90° |
Table size | 400x120mm |
X-axis travel | 220mm |
Y-axis travel | 160mm |
Z-axis travel | 210mm |
T-slot | 10mm |
Load of table | 55 kg |
Motor | 500W |
Packing size | 480×450×840mm |
Net weight | 60kg |
Standard Accessories | |
Speed display | 1set |
Depth ruler | 1set |
Drill chuck(3-16mm) | 1set |
Arbor (MT2/B16, M10) | 1set |
Standard Accessories
Speed display
Depth ruler
Drill chuck (3-16mm)
Arbor (MT2/B16 M10)
Optional Accessories
Stand & chip tray
Keyless drill chuck 3-16mm
ER25/6pcs collet chuck (4-16mm)
2-way angle vise-50mm
End mill 7pcs (4-16mm)
58pcs of clamping kits/M10×11.7mm
Kaiyun Machinery Company is a professional supplier of drilling milling machine based in China. We can offer not only drilling milling machines, but also a variety of metalworking lathes and woodworking lathes, etc. They are all CE certified, so you can feel secure in using our drilling milling machines.
